McGrath smart locks, supplied and fitted in Melbourne's north

The Australian-designed, trade-grade range: Ultra-Secua, Kedron, Albion, Hamilton, Grange, Ascot and the rest, fitted to your door and paired to your phone by the same local team that measures it.

Why buy it from a door fitter

The lock is half the job. The fit is the other half.

McGrath make trade-grade smart locks, designed in Australia for Australian conditions: 300,000-cycle tested on most models, sealed to IP65–IP66, with stainless anti-saw bolts on the deadbolts. We are security door installers, so a McGrath lock is not a box we hand you: we measure the door, pick the model that suits it, fit it square, pair it to your phone and set up the screen-door-and-main-door trick before we leave.

Most people find us because they want a security door. Plenty leave with the door and the front door both opening on one fingerprint.

Get a Fitted Price 2026 Catalogue (PDF, 2.7 MB)
McGrath SmartLocks trade-grade range, including the Ultra-Secua screen door lock and Grange pull handle
The range

The McGrath trade-grade range, compared

Ask Which One Suits
McGrath trade-grade smart lock models with door type, door thickness, lock type, weather rating, finish and extras
ModelBest forDoor thicknessLock typeWeatherFinishExtras
Ultra-Secua Screen & security doors 19–30 mm screen doors Screen door mortice IP66 Matt black Dual-unlock pairing with a McGrath door lock · AU registered design
Kedron Deadbolt swap 35–60 mm (to 100 mm with tailbar) SS304 adjustable 60–70 mm anti-saw bolt IP65 Matt black or satin nickel Fingerprint · AU registered design
Albion Front doors 35–54 mm Tubular latch or mortice IP65 Matt black or satin nickel Compact 180 × 72 mm case
Hamilton Premium front doors 35–54 mm Tubular latch or mortice IP66 Matt black or satin nickel 2-hour fire rated (Firecore/E-Core doors) · DDA-compliant lever · AU registered design
Grange Statement entries 35–55 mm (to 100 mm with tailbar) SS304 anti-saw bolt + roller bolt IP65 Matt black or satin stainless 900 mm pull handle · 200,000 cycles · patented
Ascot Gates 35–55 mm Tubular latch IP66 Satin chrome or black Double-sided · AU registered design
Windsor Compact fire-rated 35–54 mm Tubular latch or mortice IP65 Matt black or satin nickel 2-hour fire rated (Firecore/E-Core doors)
Ashgrove Deadbolt, raised buttons 35–60 mm (to 100 mm) SS304 anti-saw bolt IP65 Matt black or satin nickel Braille buttons · tempered-glass screen
Stafford Commercial 35–55 mm Tubular latch or mortice IP66 Matt black or satin nickel 2-hour fire rated (Firecore/E-Core doors) · DDA lever · raised buttons
Bardon High-traffic commercial 35–55 mm Mortice IP66 Matt black or satin nickel 2-hour fire rated (Firecore/E-Core doors) · DDA lever · braille buttons
KeySafe Backup key storage — Fingerprint key safe IP65 Black Stash a spare key without a code to share

Across the trade-grade range the access types are fingerprint, phone (Bluetooth), PIN, fobs and cards, and mechanical key; we confirm which your model carries at the measure. The Z-Chip relay (IP68) and McGrath keypads bring gates, roller doors, bollards and electric strikes into the same app.

Smart Basic series

McGrath's entry-level range for tighter budgets, in black or silver: A210, A231 and A236 are slimline mortice locks with an 85 mm pitch; NX1 suits a 60/68 mortice; NX5 and NX6 take a tubular latch or 60/50 mortice. Ask us if one of these fits the job better than a trade-grade model.

Six from the range

Pick the door. We'll name the lock.

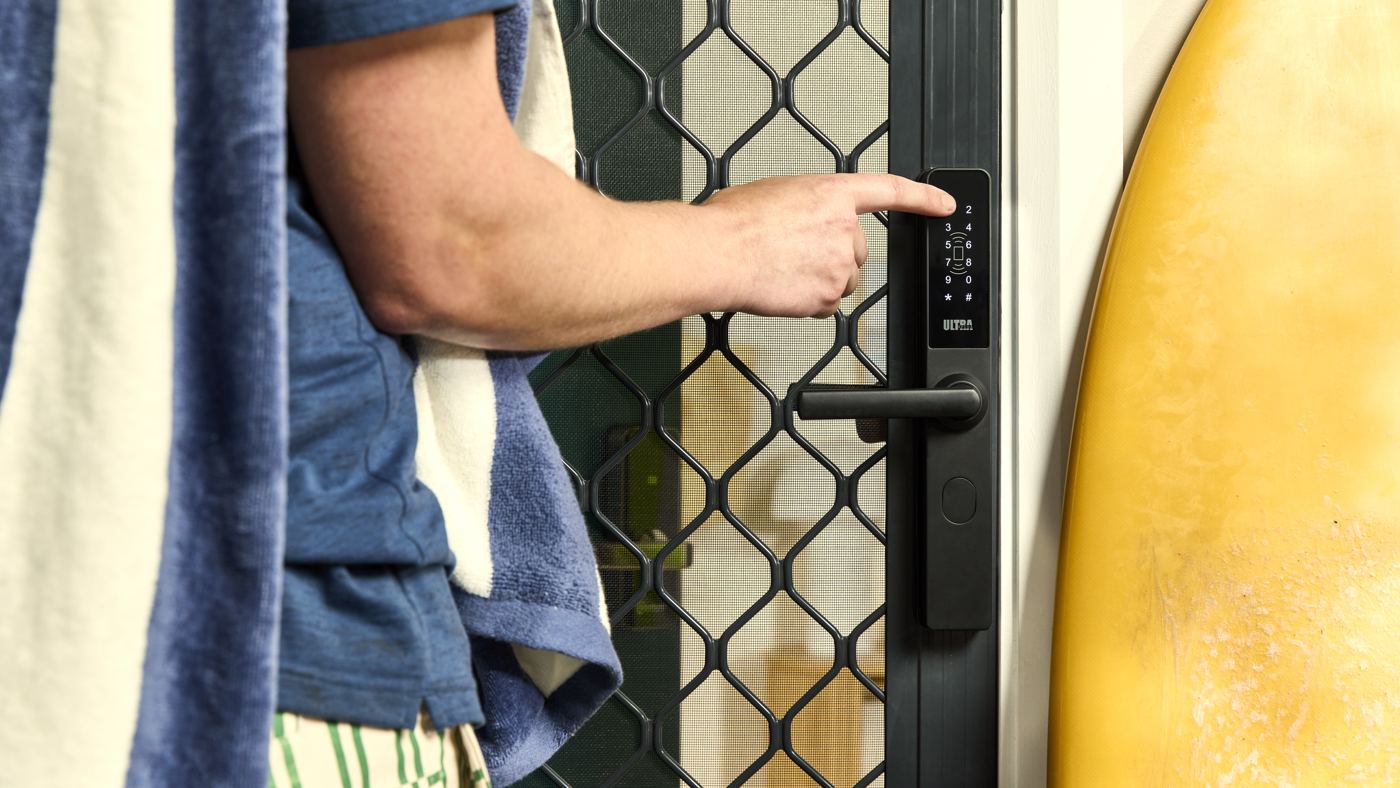

McGrath Ultra-Secua smart lock
Screen & security doors

McGrath Ultra-Secua

The only McGrath lock made for a security screen door. Retrofits to most existing screen doors, ours or anyone else's, and pairs with a McGrath lock on the main door so one unlock opens both.

19–30 mm screen doors · IP66 · Matt black

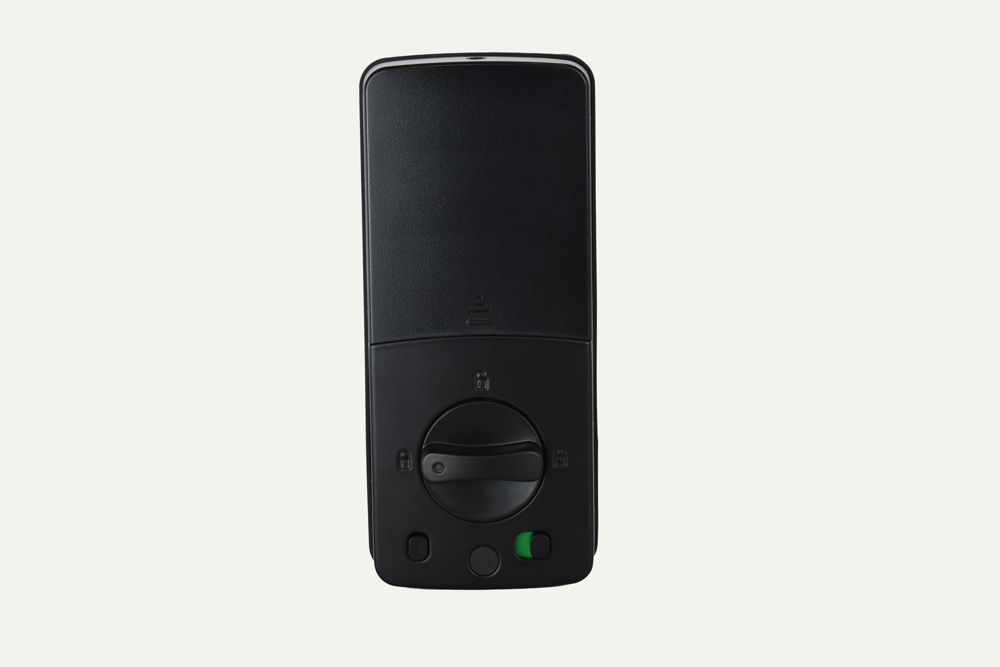

McGrath Kedron smart lock
Deadbolt swap

McGrath Kedron

Swaps into most existing deadbolt holes, so you keep your door and lose your keys. A stainless anti-saw bolt, which is more than most older deadbolts have.

35–60 mm (to 100 mm with tailbar) · IP65 · Matt black or satin nickel

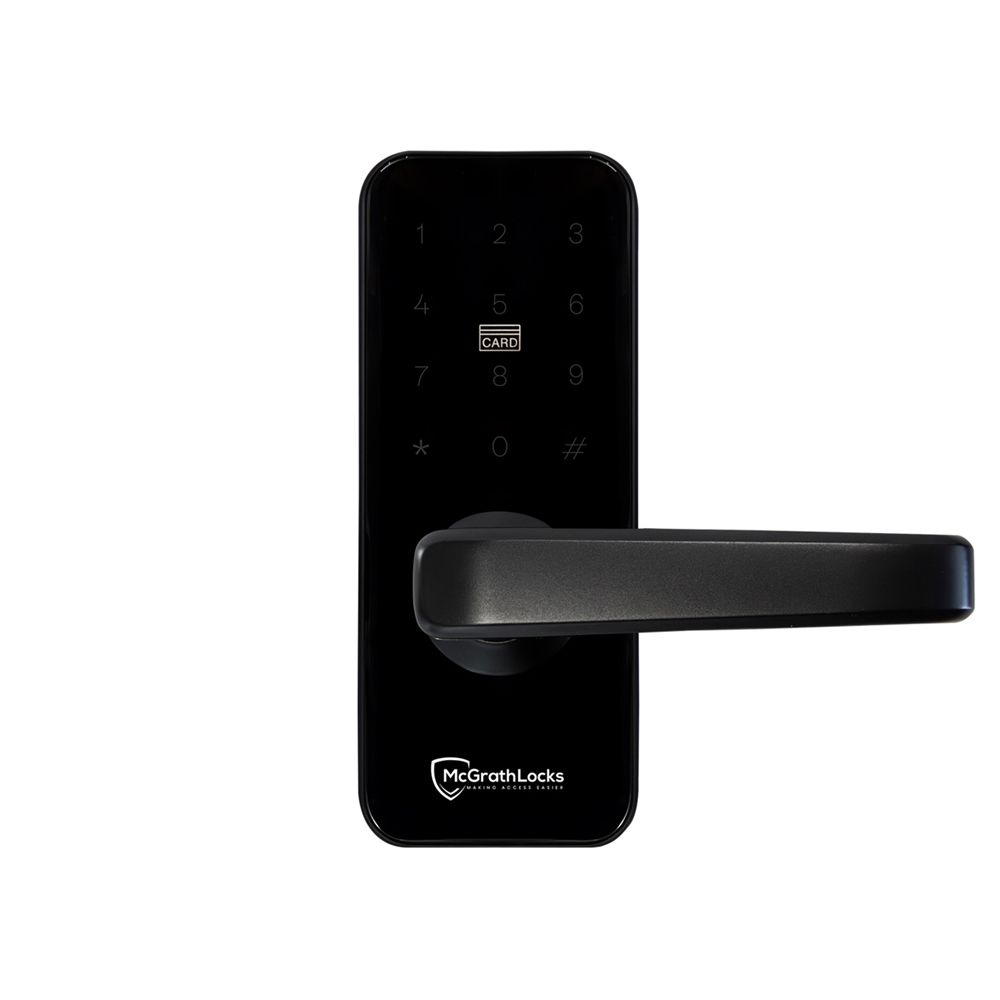

McGrath Albion smart lock
Front doors

McGrath Albion

The everyday front-door lock. Compact, tidy on a standard timber or metal entry door, packed with access options, and without the fire-rating price tag.

35–54 mm · IP65 · Matt black or satin nickel

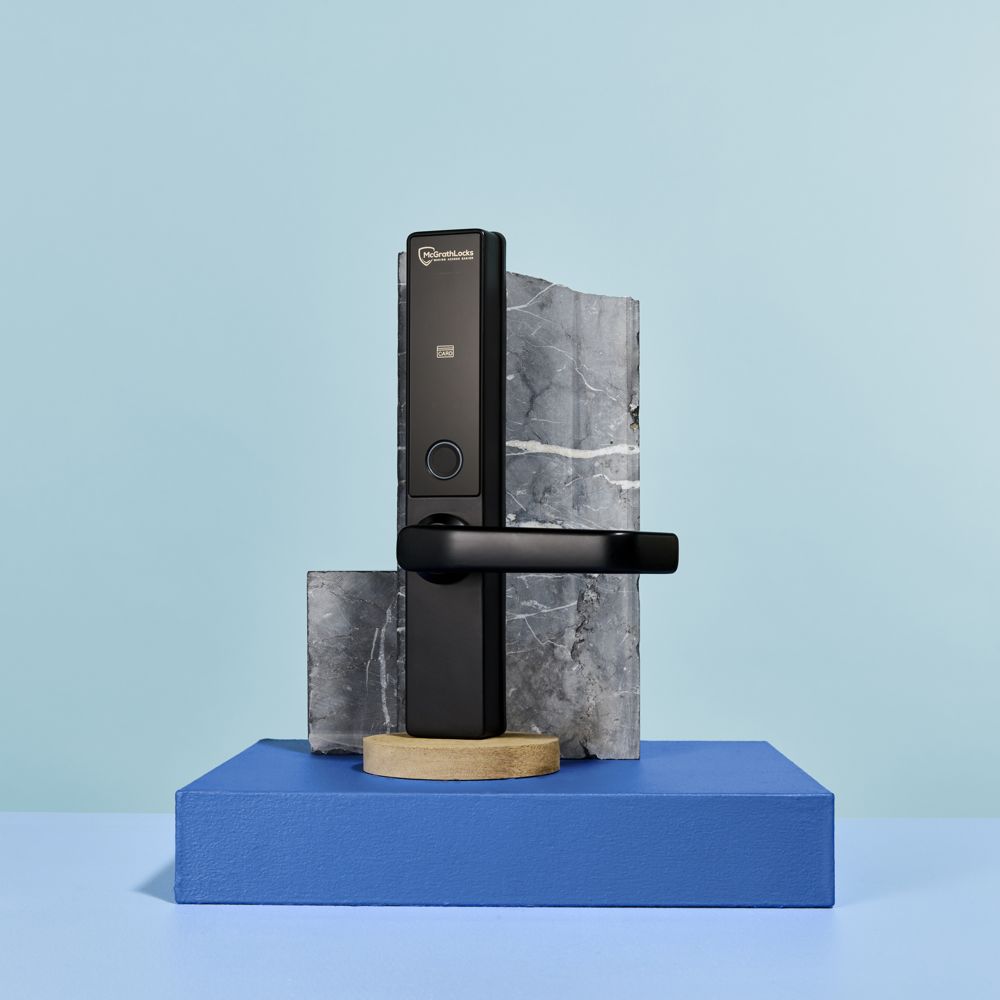

McGrath Hamilton smart lock
Premium front doors

McGrath Hamilton digital lock

Top of the residential range: fingerprint access on a slim 260 × 45 mm case, a 2-hour fire rating on Firecore and E-Core apartment and townhouse entry doors, a DDA-compliant lever and IP66 hose-jet sealing. Fits 35–54 mm doors with a tubular latch or mortice. Australian Registered Design 202316722.

35–54 mm · IP66 · Matt black or satin nickel

McGrath Grange smart lock
Statement entries

McGrath Grange

A 900 mm pull handle with the fingerprint reader built in. For wide contemporary entries where the handle is the feature.

35–55 mm (to 100 mm with tailbar) · IP65 · Matt black or satin stainless

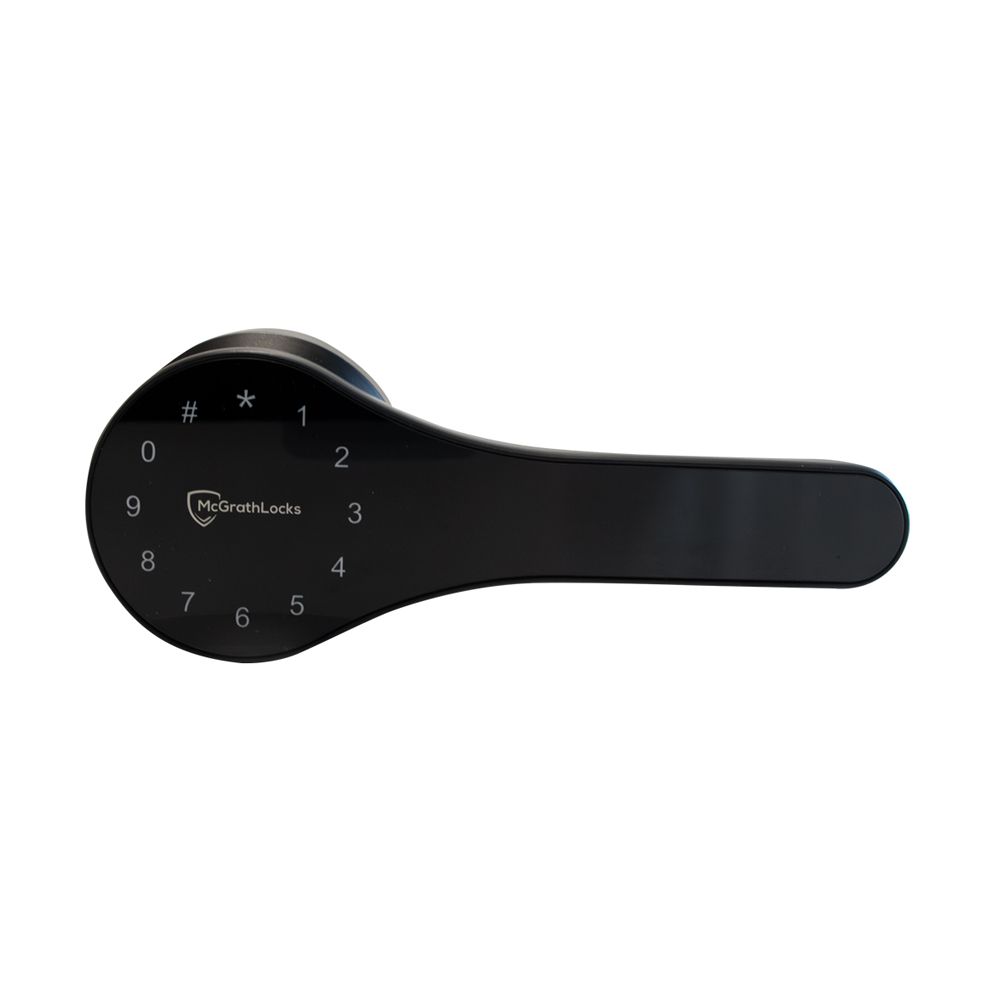

McGrath Ascot smart lock
Gates

McGrath Ascot

Locks from both sides, for gates and doors that need a reader on each face. IP66, so it shrugs off the hose and the weather.

35–55 mm · IP66 · Satin chrome or black

Which lock for which door

Match the lock to the opening

Security or fly screen door

Ultra-Secua. The one McGrath lock made for 19–30 mm screen doors. Pair it with a McGrath lock on the main door behind it.

Existing deadbolt you want to keep

Kedron or Ashgrove. Both swap into most deadbolt installations. Ashgrove adds braille buttons.

Standard timber or metal front door

Albion, Windsor or Hamilton. Albion for value, Windsor if the door must be fire rated, Hamilton for the lot.

Apartment or townhouse entry (fire door)

Windsor or Hamilton. 2-hour fire rating on Firecore and E-Core doors; Hamilton adds the DDA lever.

Wide pivot or feature entry

Grange. The 900 mm handle is the lock. Extended tailbars suit doors up to 100 mm.

Side gate or courtyard door

Ascot. Double-sided and IP66, for gates and doors that need locking from both sides.

Shop, office or strata common door

Stafford or Bardon. Fire, water and dust resistant with DDA levers and raised buttons for high traffic.

Roller door, electric gate or strike

Z-Chip + keypad. An IP68 relay module that brings motorised doors into the same app.

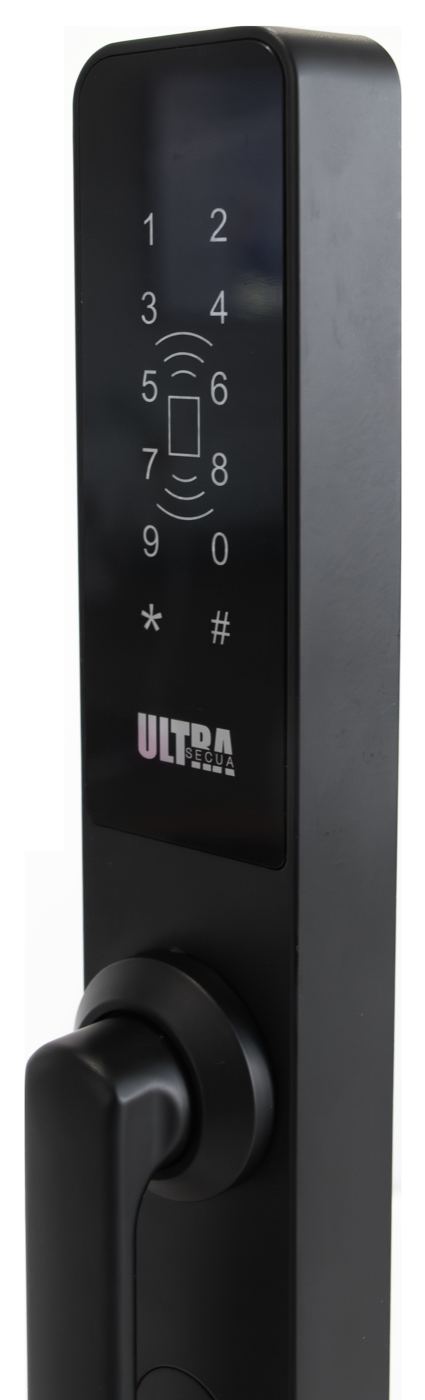

McGrath Ultra-Secua screen door smart lock, matt black, keypad and card reader
Supplied and fitted

What moves the price

We quote on site, not over the phone, because the door decides half the job. Four things set the price:

The model

A compact Albion and a fire-rated Hamilton are different locks at different prices.

The door

A clean swap into an existing deadbolt is the quickest job. Cutting a new mortice, or preparing an old timber door, takes longer.

One lock or two

The screen-door-plus-main-door pairing is two locks and one visit.

Wi-Fi and extras

A G3, G4 or G5 gateway adds remote control from anywhere. Fobs, cards and a KeySafe are optional add-ons.

The measure and quote are free, the price we give you on the day is the price you pay, and if a cheaper model does the job, we will say so.

Book a Free Measure & Quote
App & gateways

The McGrath Locks App: powered by TTLock, run from your phone

Share access, take it back

Temporary, timed or recurring access for family, guests, cleaners and trades. Grant it from the couch, revoke it the same way.

Bluetooth at the door

Your phone talks to the lock directly when you are there. No Wi-Fi, no hub, no subscription needed for everyday use.

Remote with a gateway

Add a McGrath G3, G4 or G5 Wi-Fi gateway and lock, unlock and monitor from anywhere with internet, overseas included.

Booking platforms

TTLock plugs into popular booking software, so short-stay guests get their own code for their exact dates. Airbnb setup.

Smart-home integrations

Thousands of TTLock integrations. If you run a particular smart-home platform, tell us before you buy and we will confirm what works with it.

Whole-property access

The Z-Chip module and McGrath keypads bring gates, roller doors, bollards and electric strikes into the same app.

Access types

Five ways in, across the range

  • Fingerprint
  • Phone (Bluetooth)
  • PIN code
  • Fobs, cards, wristbands
  • Mechanical key

Kids get fingerprints, the cleaner gets Tuesdays, grandparents get school pick-up hours, and you keep a key in a fingerprint KeySafe for the day a phone goes swimming. We confirm which access types your model carries at the measure.

Prefer to talk it through? Call 0431 905 944.

Looking for installation in general rather than the McGrath range? Start at smart lock installation.

McGrath links: warranty terms · smart lock guide · McGrath Locks App for iPhone and Android.

FAQ

McGrath smart locks: common questions

Are McGrath locks a good brand?
They are a trade-grade brand: designed in Australia by a Brisbane builder who got sick of digital locks failing on site, 300,000-cycle tested (Grange 200,000), IP65–IP66 weather sealed, with stainless anti-saw bolts on the deadbolts and 2-hour fire-rated options for Firecore and E-Core doors. It is the brand locksmiths and builders trust on site.
Is there an app for McGrath locks?
Yes, the McGrath Locks App, powered by TTLock. It unlocks the door, grants temporary, timed or recurring access to family, guests, cleaners and trades, and connects to thousands of smart-home and booking-platform integrations. Add a McGrath G3, G4 or G5 Wi-Fi gateway and you can operate and monitor the lock from anywhere with internet.
Do I need Wi-Fi for a McGrath smart lock?
No. Fingerprint, PIN, fob, card and key access work with no internet at all, and your phone connects over Bluetooth when you are at the door. Wi-Fi, through a gateway, only adds remote access and monitoring when you are away.
Can you fit a McGrath lock to my existing door?
Usually, yes. Screen and security doors take the Ultra-Secua, existing deadbolts swap to the Kedron or Ashgrove, and standard doors from 35 mm thick suit the rest of the range. We confirm the model and the fit at a free measure, and we tell you straight if a door is not suitable.
Are you a McGrath installer in Melbourne?
We supply and fit the McGrath range as part of our security door work across Melbourne's northern suburbs, from Preston. We fit the lock, pair it to your phone, set up the screen-and-main-door pairing where you have one, and hand it over working.
What does a McGrath smart lock cost fitted?
It depends on the model, the door and whether you are pairing two locks, which is why we quote on site rather than over the phone. The measure and quote are free, the price we give you on the day is the price you pay, and we will tell you if a cheaper model does the job.
What happens if the battery goes flat?
The locks run on batteries and the app shows the battery level. The range includes a mechanical key override among its access types, and we confirm your model's backup access and show you the battery change at handover, so a flat battery is a nuisance, not a lockout.
How do I reset a McGrath door lock?
Call us first. Most "resets" people search for are a settings change we can talk you through in a minute, and a factory reset wipes every fingerprint and code on the lock, so it is the last resort, not the first.
Where do I find the McGrath locks manual?
The printed manual for your model comes in the box and we leave it with you at handover. McGrath's smart lock guide covers choosing, installing and using the locks, and if you have lost your manual, call us and we will point you to the right one.
What is the warranty?
McGrath give a 24-month limited warranty on the trade-grade models (Albion, Ascot, Windsor, Ultra-Secua, Hamilton, Bardon, Stafford, Kedron, Ashgrove and Grange) and 12 months on everything else, including the Smart Basic series, KeySafe and gateways. It covers defects in materials and workmanship under normal use. We back the installation with our own two-year cover, see our warranty page for the detail.
